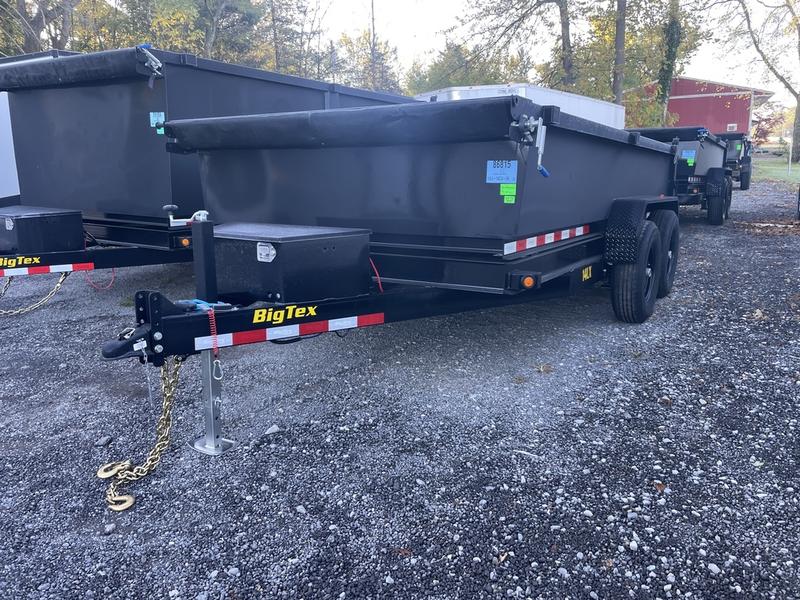

2025 Big Tex Trailers 14LX 14LX-14

Specifications

Specification

Length	14 ft
Width	7 ft
Interior Height	2 ft
GVWR	14000 lbs
Axle Quantity	2
Hitch Type	Bumper Pull

Weights

Gross Axle Weight Rating, Rear	7000 lbs
Weight	3660 lbs

Capacities

Cargo Capacity	10340 lbs
Axle Capacity, Rear	7,000 lbs Premium, Cambered Axles with Quick-Lubricating Hubs

Dimensions

Dimensions	A: 168" | B: 100" | C: 68”
Coupling	Adjustable 2-5/16" Coupler

Chassis

Mainframe	6" Channel
Chassis	Tongue: 6" Channel | Cross-Members: 3" Channel on 16" Centers | Front Stop Rail: 3/16" Fabricated Front Stop Rail | Tie-Downs: (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control | Sides: 24" Tall (10 Ga) with formed Channel Supports | Top Rail: 3"x 2" Rectangular Tubing

Brakes

Brake System Type

Forward Self-Adjusting Electric Brakes on All Hubs

Suspension

Suspension

Multi-Leaf Spring w/ Equalizer

Lights and Safety

Safety Features	3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Lighting	Recessed, Grommet-Mounted L.E.D. Lighting

Features

Features

Jack: 7,000 lbs Top Wind Drop Leg Jack | Fenders: 9” x 72” 14 Ga. Diamond Plate Double Square Broke | Ramps: 6.5' Slide in Ramps with Integrated Ramp Door | Stake Pockets: Stake Pockets Along Both Sides (Quantity Varies by Length) | Bolt Pattern: 8-Lug | Spare Mount: Side Spare Tire Mount | Paint Type: Professional Finish w/ Primer Standard | Break-Away Kit: Complete System with Breakaway Cable | Gate: Rear Combo Gate (Barn Doors & Spreader Gate) | J-Hooks: Along sides and rear for Cargo Control | Stabilizers: Rear Stabilizer Stands | Steps: Convenient Side-Step to Access Top Rail | Storage: Lockable Pump and Battery Box mounted in Front of Bed | Tarp: Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders

Construction Material

Floor: 10 Gauge Smooth Steel

Electric

Electrical	7-Way RV
Harness	Sealed, Modular Cold-Weather Wiring Harness

Wheels & Tires

Tires, Rear Specification	ST235/80 R-16 Load Range-E 10 Ply Radial Tires
Wheels	Black Mod Steel

Color

Color Option

Black

Battery

Battery

12V Deep Cycle | Charger: 5A 110V on Board Battery Charger

Hydraulics

Hydraulic Type	Power: Power Up/Power Down & Gravity Down Hydraulic Pump
Cylinder Liners	Ram: Self-Contained Scissor

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
