The TrailMaxx MAX27-40 is a 40-foot tandem axle (T/A) gooseneck equipment trailer with a typical 12,000 lb GVWR, featuring a ~35-foot main deck, a 5-foot fixed dovetail, and manual or spring-assisted ramps. It includes an I-beam frame, wood flooring, and electric brakes, but specific features like usable deck width and tire size can vary slightly by model year.
Key Specifications & Features
Length: 40 feet (with a ~35 ft main deck and ~5 ft fixed dovetail)
Axles: Tandem axles
GVWR: 12,000 lbs (for the 12k model)
Frame: 12" I-beam frame
Deck: 2" treated wood flooring
Ramps: Manual or spring-assisted ramps
Brakes: Electric brakes on both axles
Suspension: Spring suspension
Common Variations & Features
Usable Deck Width: Around 96-101 inches, depending on the model year and configuration.
Tires: Typically 235/80R16 or 235/85R16.

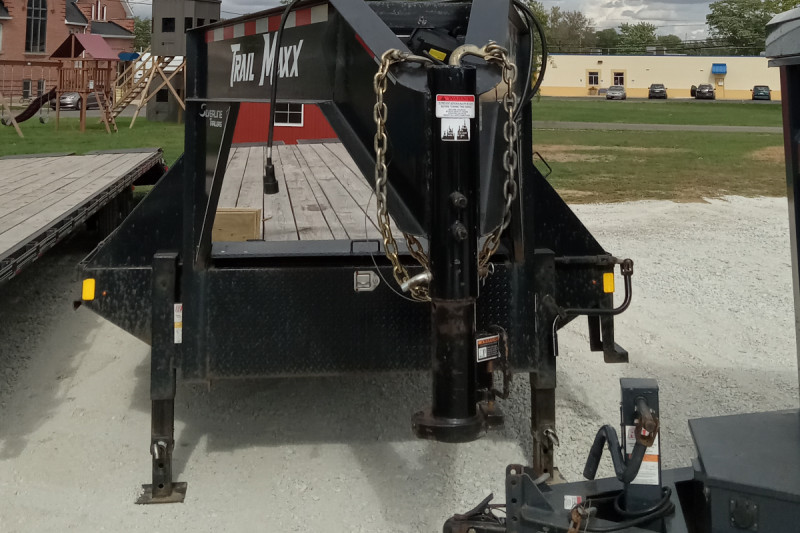

Gooseneck: Adjustable coupler and a toolbox between the neck are common features.
Lighting: Standard LED lighting.
Typical Use Cases
This gooseneck equipment trailer is designed for transporting construction machinery, vehicles, and other heavy equipment. The gooseneck design allows for a longer, flat deck and provides greater stability when towing heavy loads.
