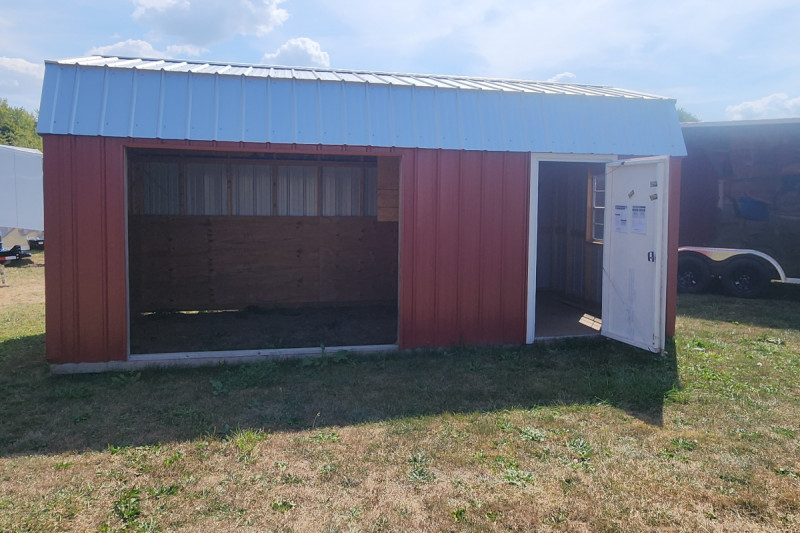

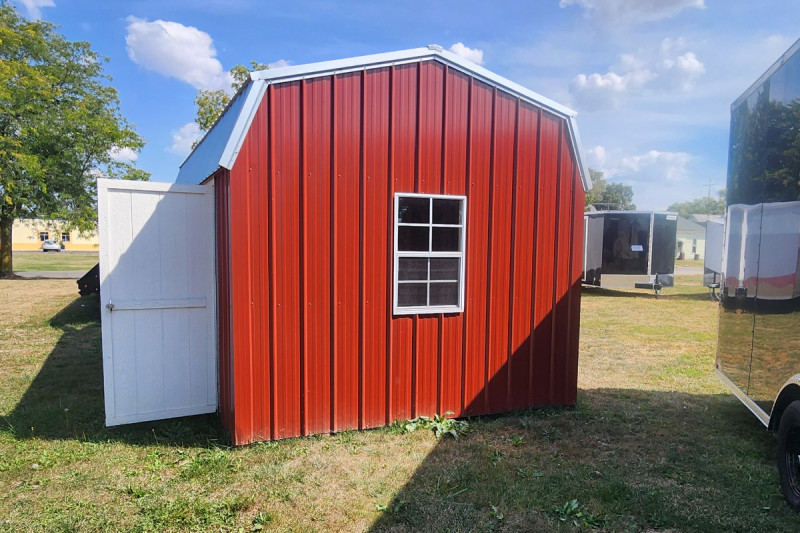

JDM Structures' Mystic Catskill 10x20 steel shed features a barn-style roof and is constructed with a 4x4 pressure-treated skid foundation and 2x4 joists. Specifications for the standard model are outlined below, but keep in mind that custom options for colors, lofts, windows, and other features are often available.
Construction
Dimensions: 10 feet wide by 20 feet deep.
Siding: Metal siding and a metal roof are the signature feature for this variation, with color options often available.
Foundation: 4x4 pressure-treated skids.
Flooring: 5/8" pressure-treated flooring over 2x4 pressure-treated joists, spaced 16 inches on center.
Wall Framing: 2x4 wall studs spaced 16 inches on center.
Roof: 29-gauge metal roof, with 2x4 rafters spaced 24 inches on center. The Mystic Catskill is a barn-style shed, meaning it has a gambrel roof design.
Vents: Two 8x16-inch aluminum air vents are included for ventilation.
Doors and windows
Door: A standard model includes a 6-foot-wide wood double door, with some steel models featuring a 5-foot-wide double door on the gable end.
Door Hardware: Doors feature a steel brace, continuous aluminum piano hinge, and a keyed latch for security.
Windows: Windows are typically an optional upgrade on the base model.
Warranty
Structure: Standard sheds from JDM Structures typically come with a 5-year "Top to Bottom" warranty.
Materials: Sheds made with LP SmartSide siding (if applicable) include a 50-year warranty on the siding.
